TEC-M0865MPCTEC-M0865MPC

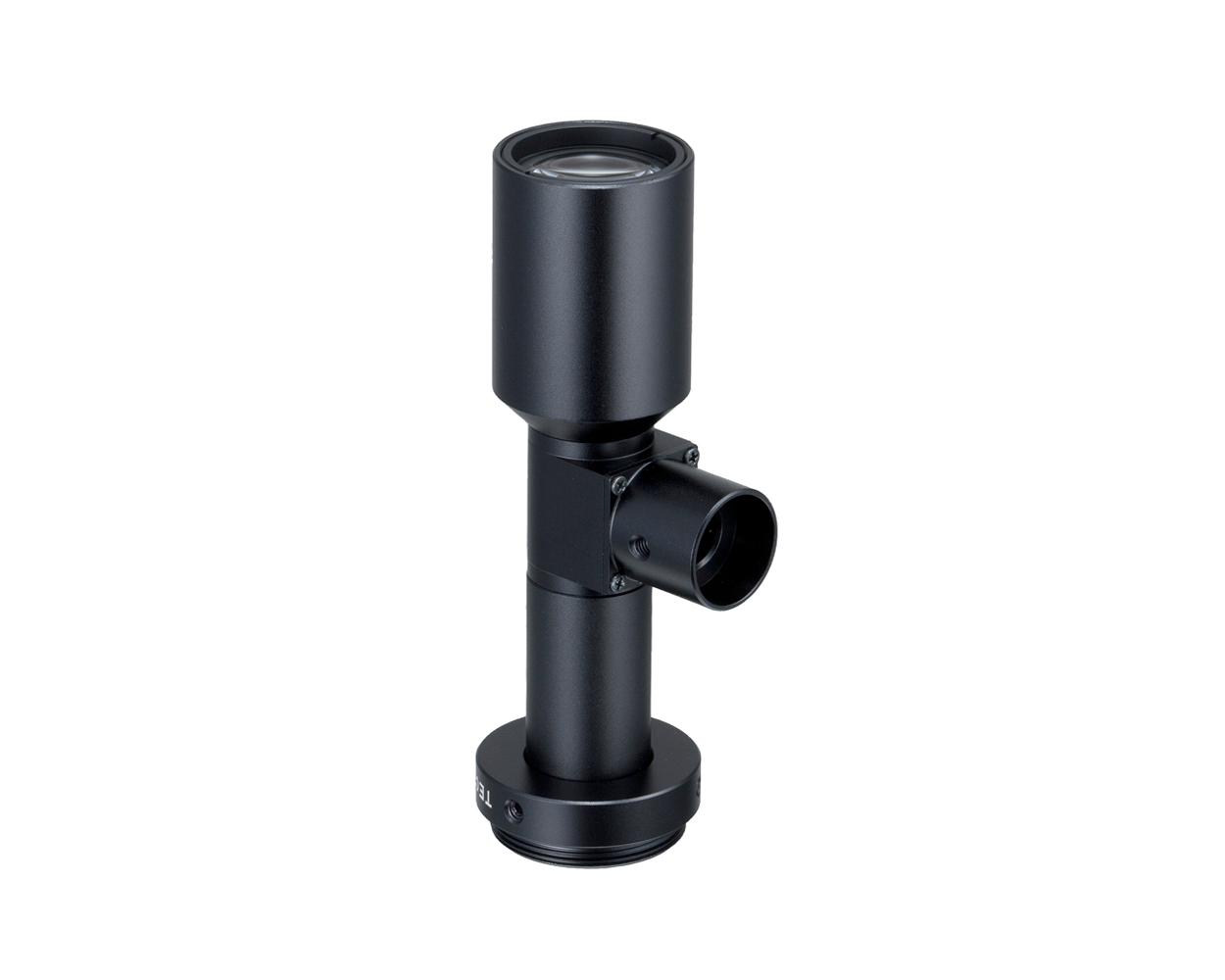

Telecentric Machine Vision Lens

TEC-M0865MPC

LIMITED QUANTITY

DISCONTINUED

2MP, 2/3" 65mm, Telecentric Lens, 0.8x magnification (C-Mount) w/ coaxial

2/3"

2/3"

2/3" Lens Format

2MP

2 Megapixel

HD lens used primarily with 2 megapixel cameras

C

C Mount

C Mount lens for use with C or CS mount cameras (5mm adapter required for CS mount camera)

FIX

Fixed Iris

Iris is fixed

COAX

Coaxial

Lens has coaxial lighting capability

FA

FA

Factory Automation Lens

TEL

Telecentric

A compound lens which has its entrance or exit pupil at infinity

The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion.

Features
  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 66mm working distance
  • 0.8x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
Resources
TEC-M0865MPC spec
